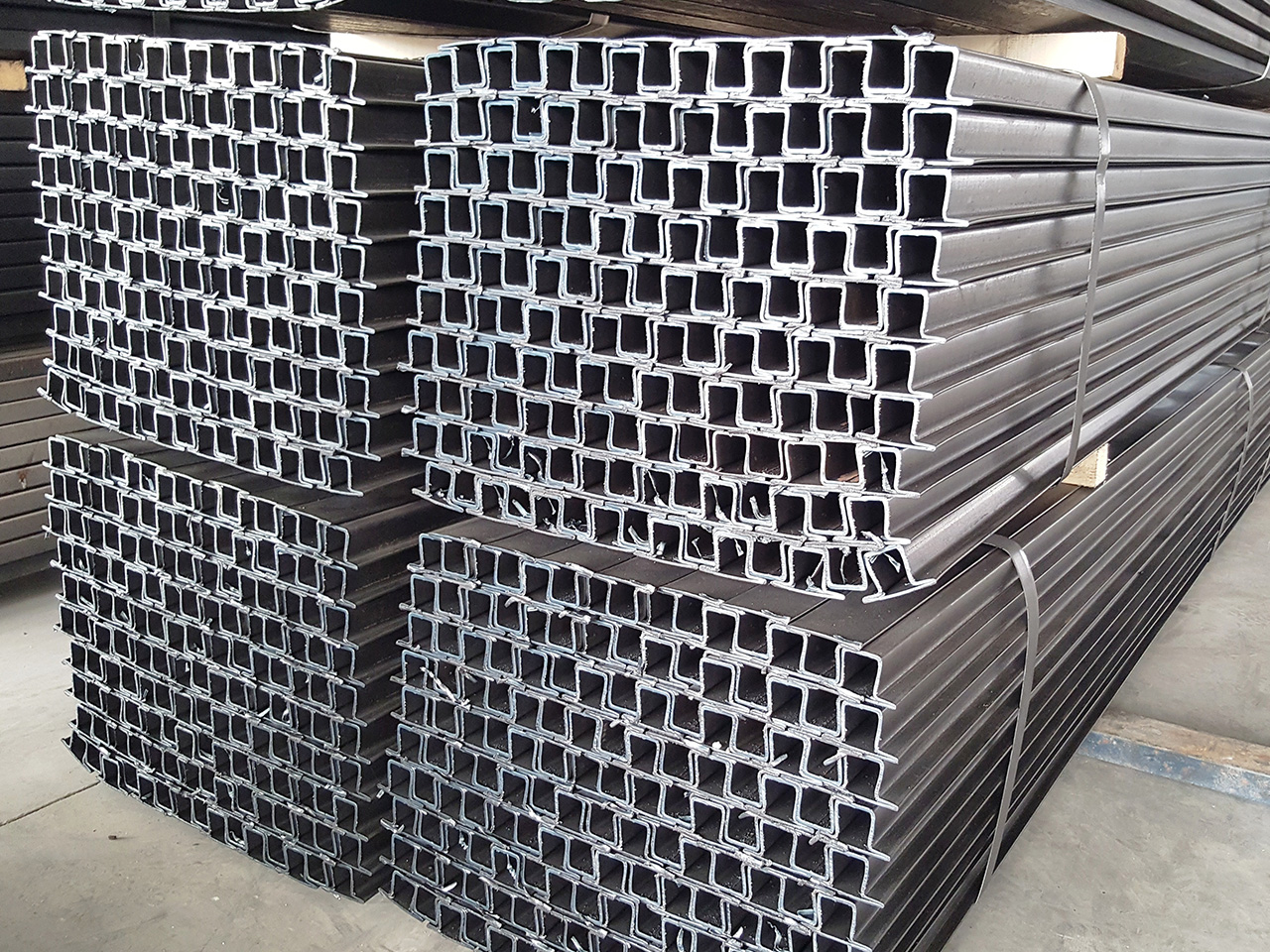

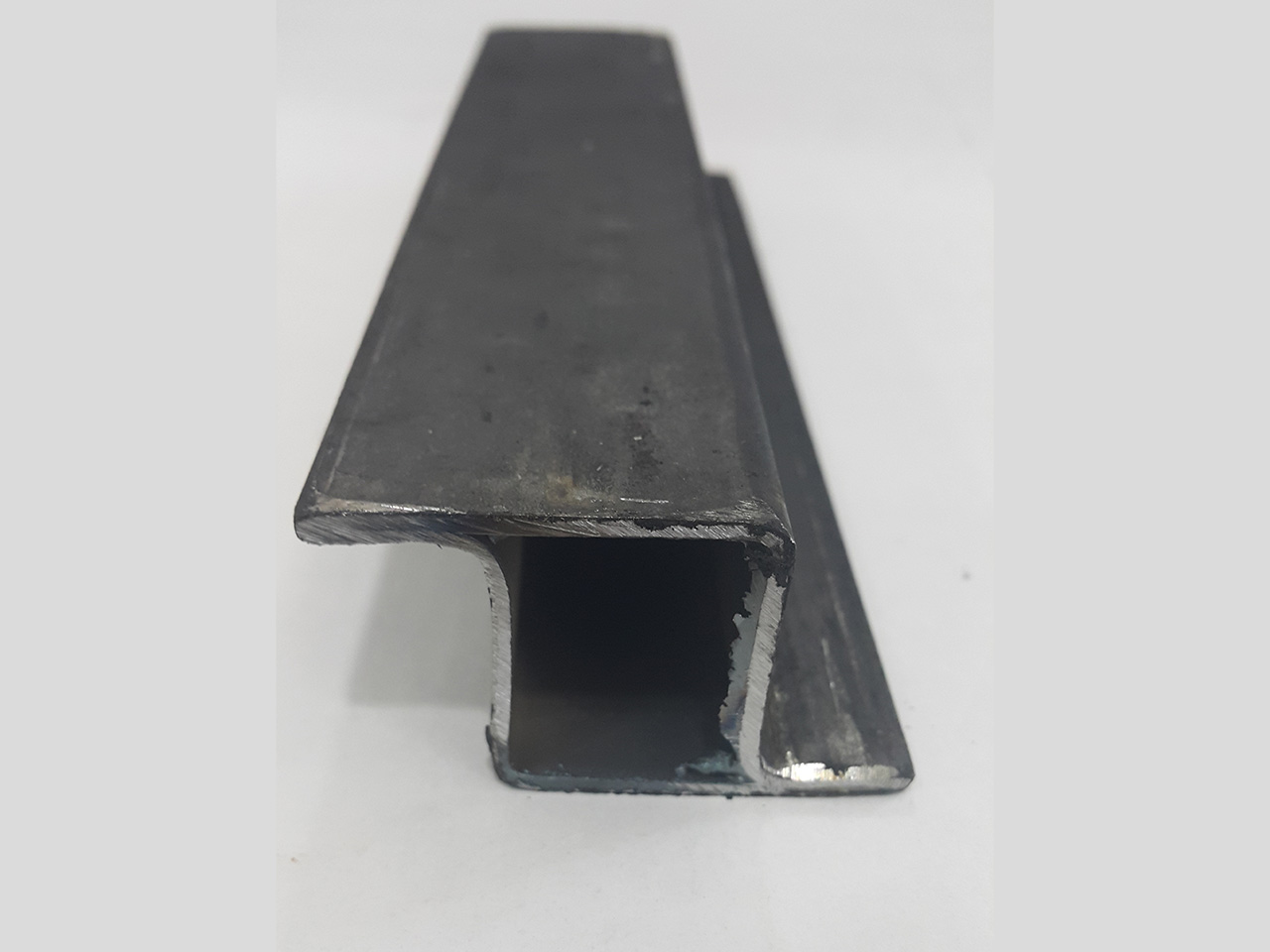

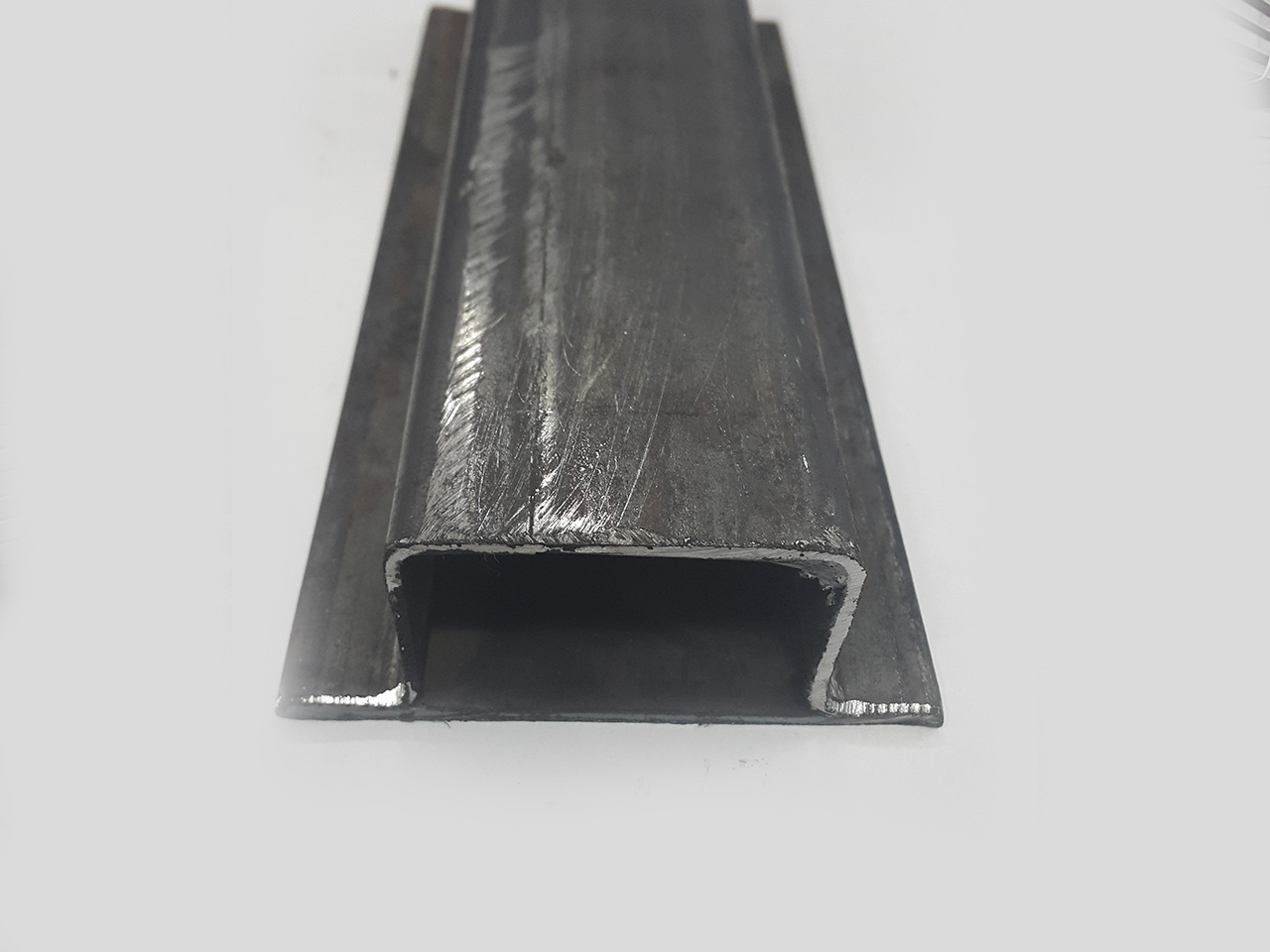

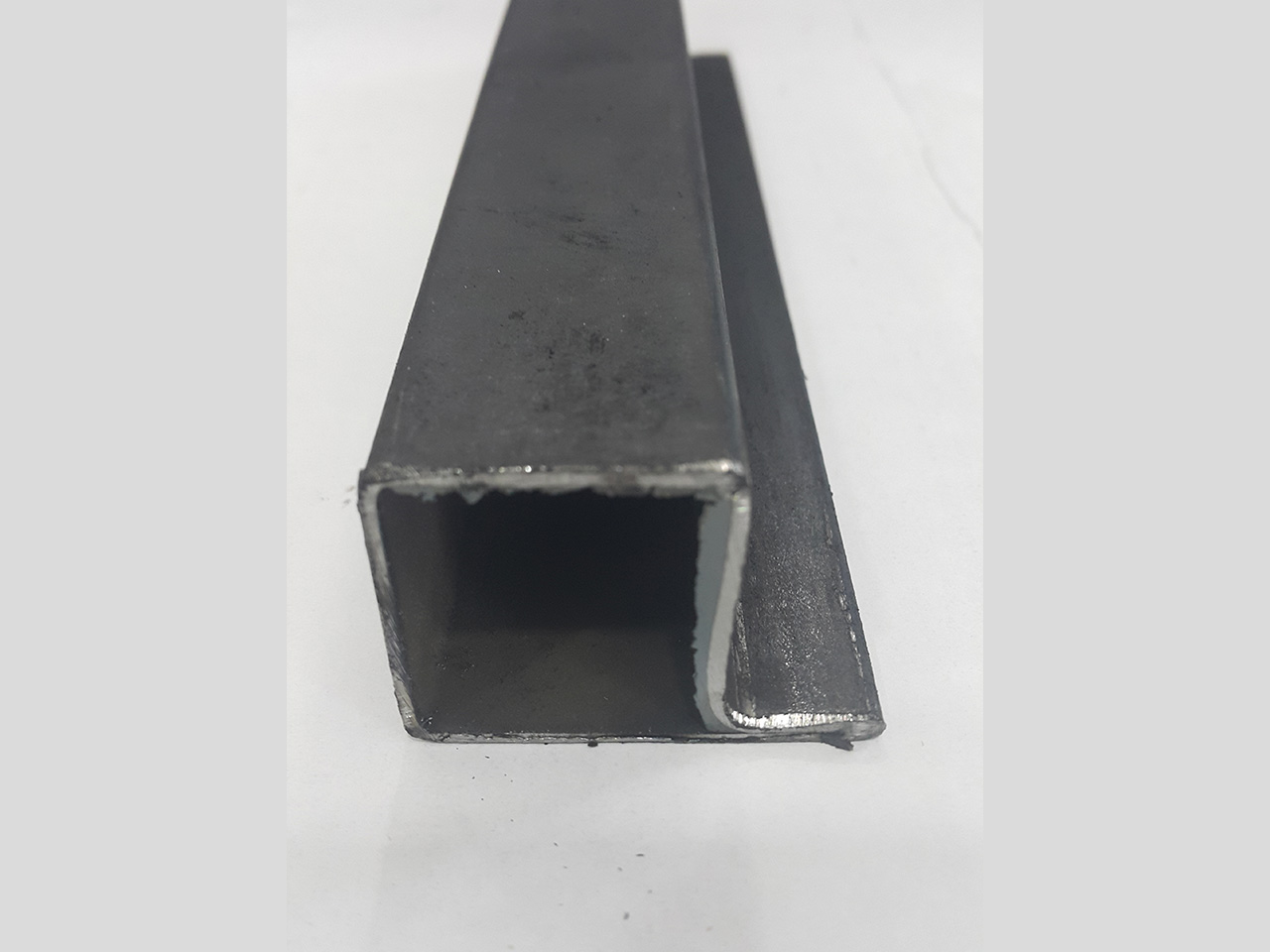

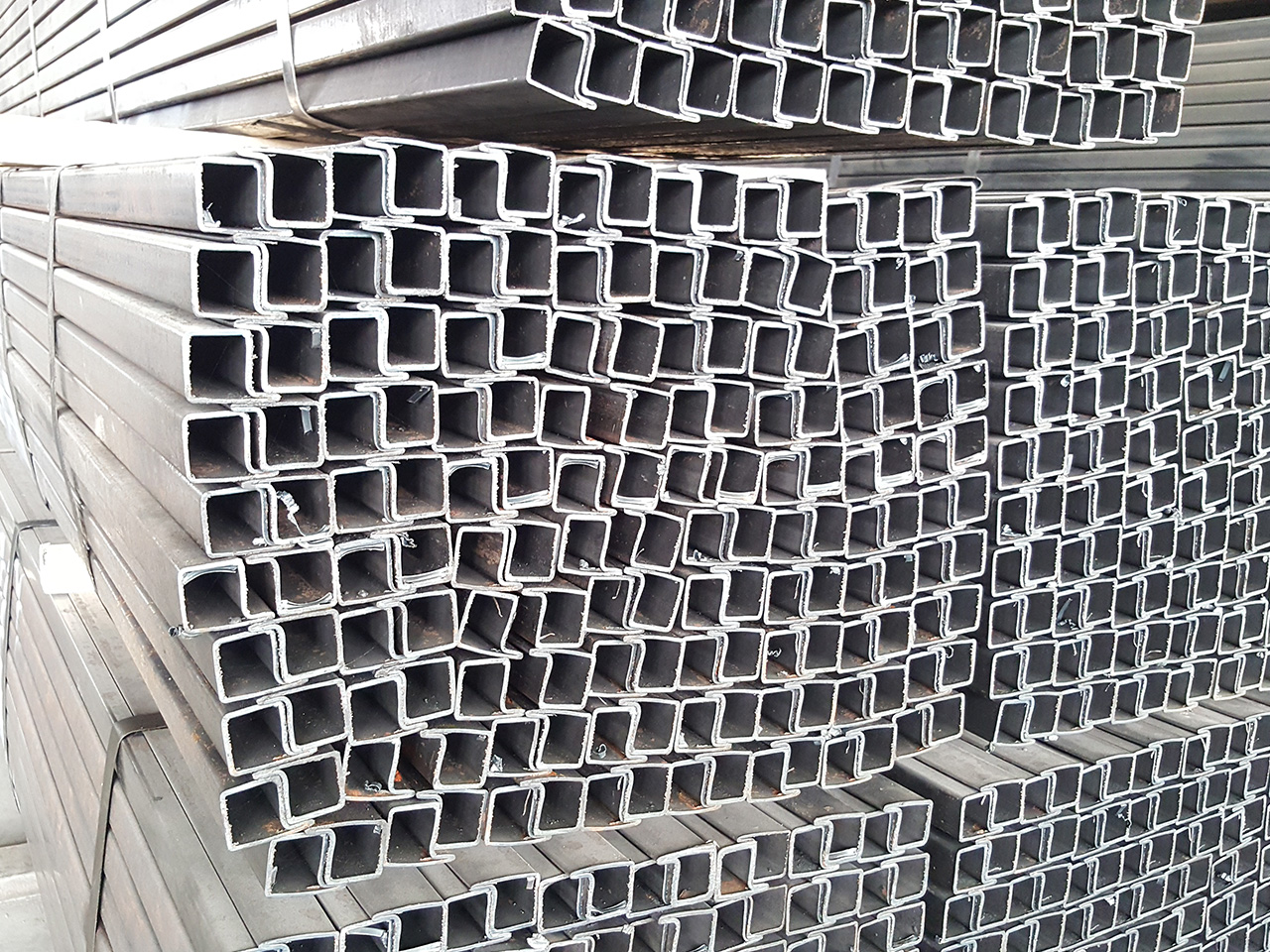

Hollow sections

Hollow sections

Hollow steel sections are manufactured from various types of black, galvanized, and oiled sheets in all dimensions, including T6, T9, L6, L9, Z6, Z9, T5, L5, and Z5. Thickness ranges from 0.50 mm to 3.00 mm, with a standard length of 6.00 meters or customizable upon request. These sections are widely used in the production of doors, windows, furniture, and other engineering designs.

TUBE WIEGHT PER 6.00 METER (KGS)
SIZE	THICKNESS
SIZE	0.50	0.60	0.70	0.80	0.90	1.00	1.20	1.40	1.50	1.80	2.00	2.80	3.00	4.00	5.00	6.00	No of PCS per Bundle
L6	3.556	4.267	4.978	5.690	6.401	7.112	8.535	9.957	10.668	12.802	14.224	19.914	21.336	-	-	-	No of PCS per Bundle	160
L9	5.888	7.065	8.243	9.420	10.598	11.775	14.130	16.485	17.663	21.195	23.550	32.970	35.325	-	-	-	60
Z6	4.239	5.087	5.935	6.782	7.630	8.478	10.174	11.869	12.717	15.260	16.956	23.738	25.434	-	-	-	150
Z9	5.417	6.500	7.583	8.666	9.750	10.833	13.000	15.166	16.250	19.499	21.666	30.332	32.499	-	-	-	70
T6	4.239	5.087	5.935	6.782	7.630	8.478	10.174	11.869	12.717	15.260	16.956	23.738	25.434	-	-	-	150
T9	5.417	6.500	7.583	8.666	9.750	10.833	13.000	15.166	16.250	19.499	21.666	30.332	32.499	-	-	-	70
T5	3.580	4.296	5.011	5.727	6.443	7.159	8.591	10.023	10.739	12.887	14.318	20.046	21.478	-	-	-	150
L5	3.580	4.296	5.011	5.727	6.443	7.159	8.591	10.023	10.739	12.887	14.318	20.046	21.478	-	-	-	150
Z5	3.580	4.296	5.011	5.727	6.443	7.159	8.591	10.023	10.739	12.887	14.318	20.046	21.478	-	-	-	150

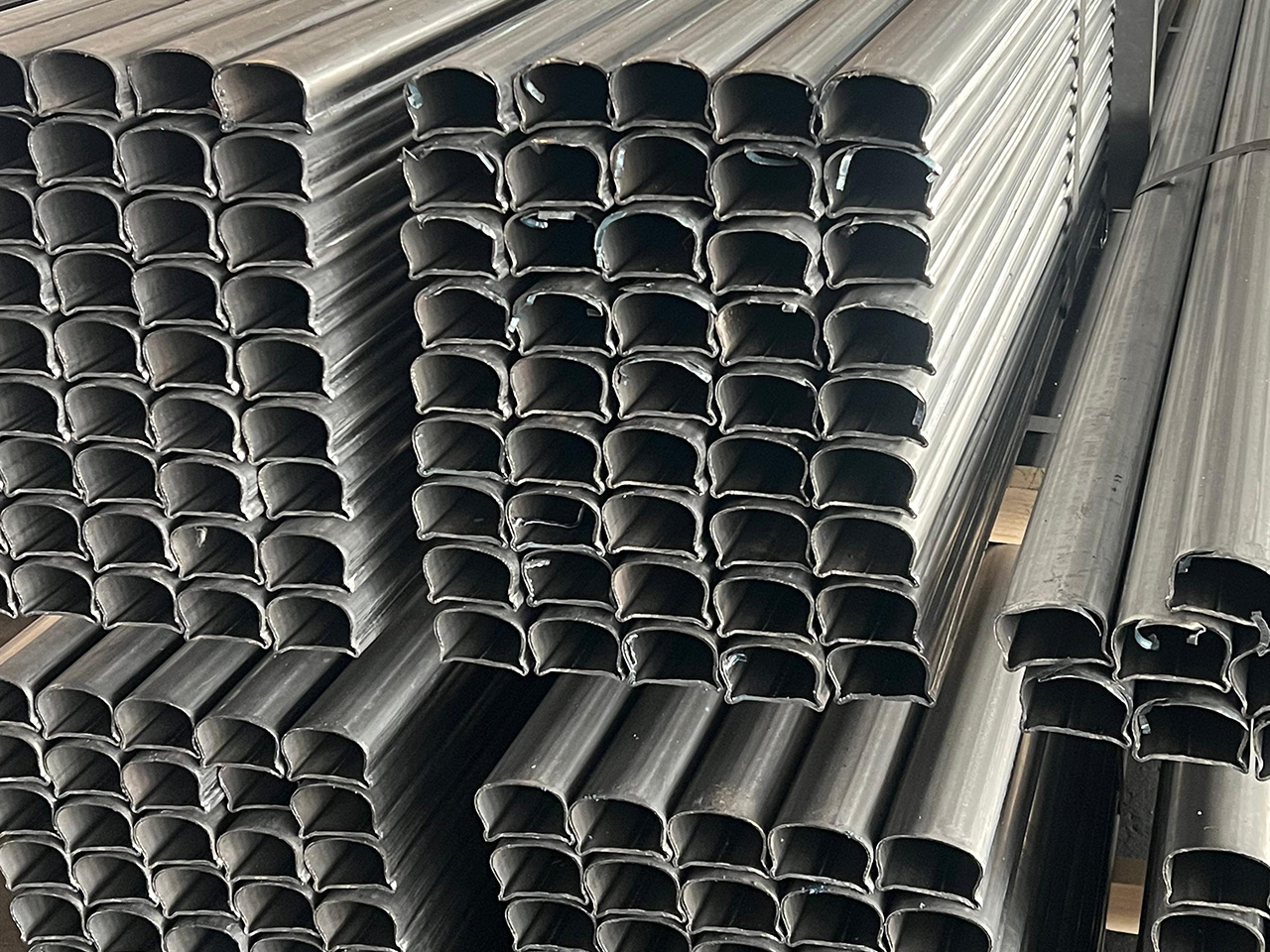

Half circle	3.062	3.674	4.286	4.898	5.511	6.123	7.348	8.572	9.185	11.021	12.246	17.144	18.369	-	-	-	70
Handle	4.404	5.285	6.165	7.046	7.927	8.808	10.569	12.331	13.212	15.854	17.615	24.662	26.423	-	-	-	24

The International Technical Company for Metal Industries

Our Products

What we offer

Rectangular Tube

Rectangular tubes are manufactured using black, galvanized, and oiled sheets, available in various sizes.

Round Pipes

Iron pipes (Round pipes) are manufactured using black, galvanized, and oiled sheets, available in various sizes.

Square Tube

Square tubes are manufactured using black, galvanized, and oiled sheets, available in various sizes
