The International Technical Company for Metal Industries

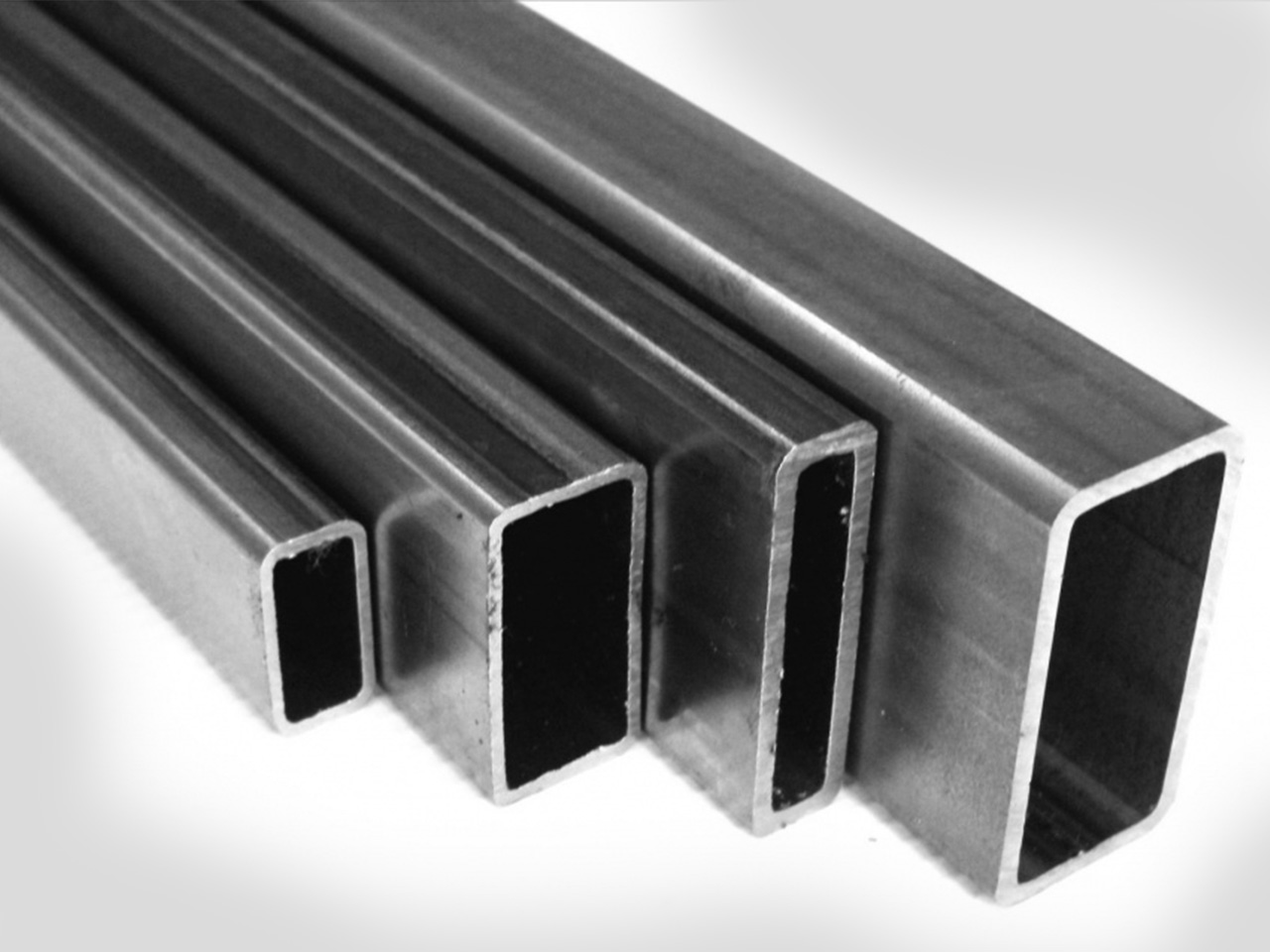

Rectangular Tube

Rectangular tubes are manufactured from all types of black, galvanized, and oiled steel sheets in a wide range of sizes, from 20x30 mm to 150x100 mm, with thicknesses ranging from 0.50 mm to 6.00 mm. The standard length is 6.00 meters, but custom lengths are also available upon request. These tubes are versatile and commonly used in various applications, including engineering projects, furniture, stands, warehouse construction, and more.

Rectangular Tube WIEGHT PER 6.00 METER (K.G)
30X20	2.308	2.769	3.231	3.693	4.154	4.616	5.539	6.462	6.924	8.308	9.232	12.924	13.847	-	-	-	100
40X20	2.779	3.335	3.890	4.446	5.002	5.558	6.669	7.781	8.337	10.004	11.116	15.562	16.673	-	-	-	70
40X10	2.308	2.769	3.231	3.693	4.154	4.616	5.539	6.462	6.924	8.308	9.232	12.924	13.847	-	-	-	70
45X23	2.779	3.335	3.890	4.446	5.002	5.558	6.669	7.781	8.337	10.004	11.116	15.562	16.673	-	-	-	70
50X25	-	-	4.880	5.577	6.274	6.971	8.365	9.759	10.456	12.547	13.942	19.518	20.912	27.883	-	-	70
60X30	-	-	5.869	6.707	7.545	8.384	10.061	11.737	12.576	15.091	16.768	23.475	25.151	33.535	-	-	60
78X38	-	-	7.583	8.666	9.750	10.833	13.000	15.166	16.250	19.499	21.666	30.332	32.499	43.332	54.165	64.998	72
80X40	-	-	7.847	8.968	10.089	11.210	13.452	15.694	16.815	20.178	22.420	31.387	33.629	44.839	56.049	67.259	72
100X50	-	-	-	-	-	14.036	16.843	19.650	21.054	25.264	28.072	39.300	42.107	56.143	70.179	84.215	50
120X80	-	-	-	-	-	18.746	22.495	26.244	28.119	33.742	37.492	52.488	56.237	74.983	93.729	112.475	20
150X100	-	-	-	-	-	23.456	28.147	32.838	35.184	42.220	46.912	65.676	70.367	93.823	117.279	140.735	20

Rectangular Tube WIEGHT PER 6.00 METER (K.G)

SIZE

THICKNESS (mm)

0.50

0.60

0.70

0.80

0.90

1.00

1.20

1.40

1.50

1.80

2.00

2.80

3.00

4.00

5.00

6.00

No of PCS per Bundle

30X20

2.308

2.769

3.231

3.693

4.154

4.616

5.539

6.462

6.924

8.308

9.232

12.924

13.847

100

40X20

2.779

3.335

3.890

4.446

5.002

5.558

6.669

7.781

8.337

10.004

11.116

15.562

16.673

40X10

2.308

2.769

3.231

3.693

4.154

4.616

5.539

6.462

6.924

8.308

9.232

12.924

13.847

45X23

2.779

3.335

3.890

4.446

5.002

5.558

6.669

7.781

8.337

10.004

11.116

15.562

16.673

50X25

4.880

5.577

6.274

6.971

8.365

9.759

10.456

12.547

13.942

19.518

20.912

27.883

60X30

5.869

6.707

7.545

8.384

10.061

11.737

12.576

15.091

16.768

23.475

25.151

33.535

78X38

7.583

8.666

9.750

10.833

13.000

15.166

16.250

19.499

21.666

30.332

32.499

43.332

54.165

64.998

80X40

7.847

8.968

10.089

11.210

13.452

15.694

16.815

20.178

22.420

31.387

33.629

44.839

56.049

67.259

100X50

14.036

16.843

19.650

21.054

25.264

28.072

39.300

42.107

56.143

70.179

84.215

120X80

18.746

22.495

26.244

28.119

33.742

37.492

52.488

56.237

74.983

93.729

112.475

150X100

23.456

28.147

32.838

35.184

42.220

46.912

65.676

70.367

93.823

117.279

140.735

Hollow sections

The company manufactures hollow steel sections from all types of black, galvanized, and oiled sheets in various sizes
