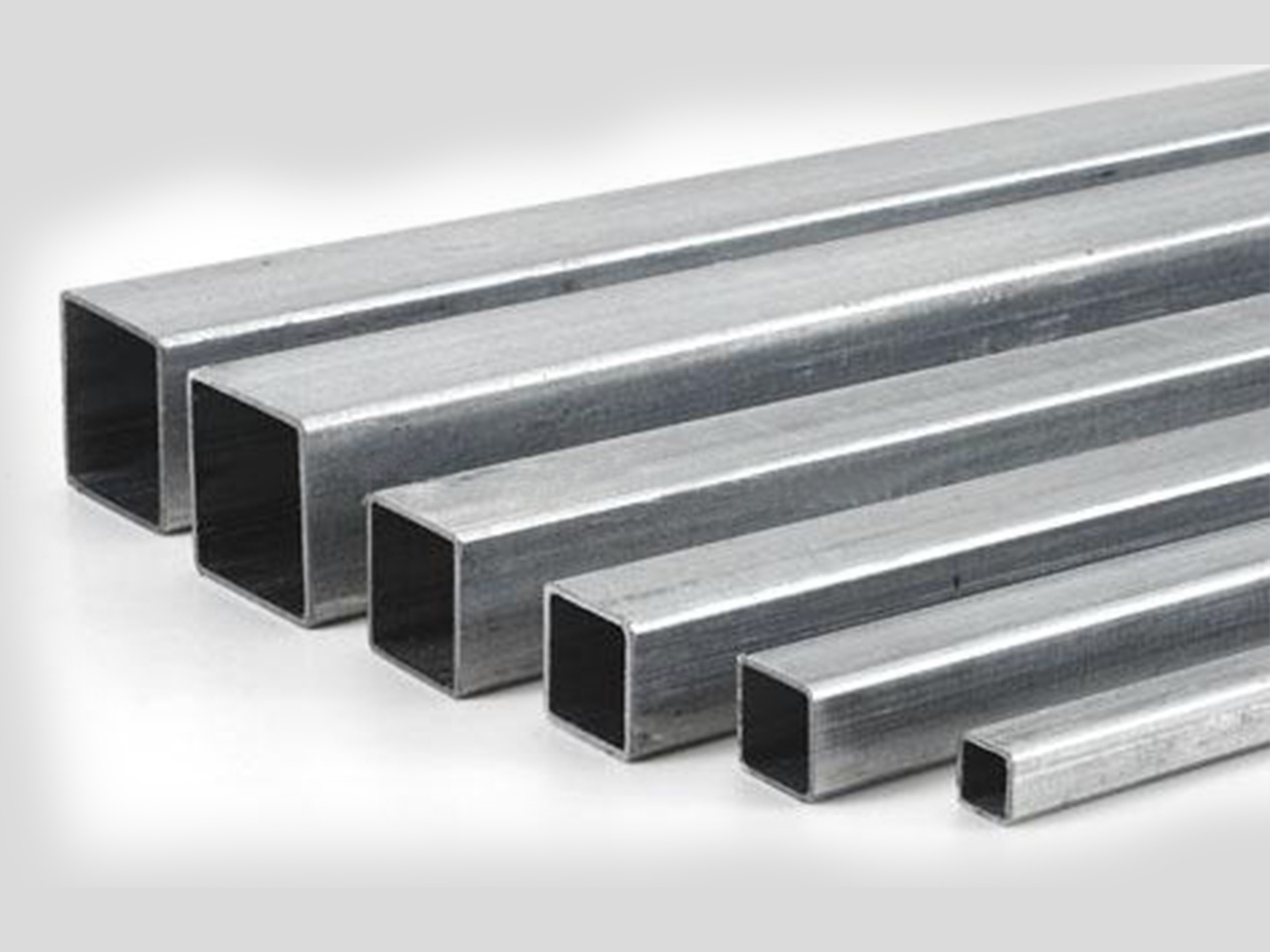

Square Tube

Square tubes are manufactured from all types of black, galvanized, and oiled steel sheets in sizes ranging from 16x16 mm to 150x150 mm, with thicknesses from 0.50 mm to 6.00 mm. The standard length is 6.00 meters, with custom lengths available upon request. These tubes are used in various applications, including engineering projects, furniture, stands, warehouse construction, and more.

TUBE WIEGHT PER 6.00 METER (K.G)
16X16	1.460	1.752	2.044	2.336	2.628	2.920	3.504	4.088	4.380	5.256	5.840	8.177	8.761	-	-	-	100
19X19	1.743	2.091	2.440	2.788	3.137	3.485	4.182	4.880	5.228	6.274	6.971	9.759	10.456	-	-	-	100
25X25	2.308	2.769	3.231	3.693	4.154	4.616	5.539	6.462	6.924	8.308	9.232	12.924	13.847	-	-	-	100
30X30	2.779	3.335	3.890	4.446	5.002	5.558	6.669	7.781	8.337	10.004	11.116	15.562	16.673	-	-	-	100
38X38	3.533	4.239	4.946	5.652	6.359	7.065	8.478	9.891	10.598	12.717	14.130	19.782	21.195	-	-	-	64
40X40	3.721	4.465	5.209	5.953	6.698	7.442	8.930	10.419	11.163	13.395	14.884	20.837	22.325	-	-	-	64
50X50	-	-	-	-	-	9.326	11.191	13.056	13.989	16.786	18.652	26.112	27.977	-	-	-	49
60X60	-	-	-	-	-	11.210	13.452	15.694	16.815	20.178	22.420	31.387	33.629	44.839	-	-	36
80X80	-	-	-	-	-	14.978	17.973	20.969	22.467	26.960	29.956	41.938	44.933	59.911	74.889	89.867	36
100X100	-	-	-	-	-	18.746	22.495	26.244	28.119	33.742	37.492	52.488	56.237	74.983	93.729	112.475	25
120X120	-	-	-	-	-	22.514	27.017	31.519	33.771	40.525	45.028	63.039	67.541	90.055	112.569	135.083	16
150X150	-	-	-	-	-	28.166	33.799	39.432	42.249	50.698	56.332	78.864	84.497	112.663	140.829	168.995	16

TUBE WIEGHT PER 6.00 METER (K.G)

SIZE

THICKNESS (mm)

0.50

0.60

0.70

0.80

0.90

1.00

1.20

1.40

1.50

1.80

2.00

2.80

3.00

4.00

5.00

6.00

No of PCS per Bundle

16X16

1.460

1.752

2.044

2.336

2.628

2.920

3.504

4.088

4.380

5.256

5.840

8.177

8.761

100

19X19

1.743

2.091

2.440

2.788

3.137

3.485

4.182

4.880

5.228

6.274

6.971

9.759

10.456

100

25X25

2.308

2.769

3.231

3.693

4.154

4.616

5.539

6.462

6.924

8.308

9.232

12.924

13.847

100

30X30

2.779

3.335

3.890

4.446

5.002

5.558

6.669

7.781

8.337

10.004

11.116

15.562

16.673

100

38X38

3.533

4.239

4.946

5.652

6.359

7.065

8.478

9.891

10.598

12.717

14.130

19.782

21.195

40X40

3.721

4.465

5.209

5.953

6.698

7.442

8.930

10.419

11.163

13.395

14.884

20.837

22.325

50X50

9.326

11.191

13.056

13.989

16.786

18.652

26.112

27.977

60X60

11.210

13.452

15.694

16.815

20.178

22.420

31.387

33.629

44.839

80X80

14.978

17.973

20.969

22.467

26.960

29.956

41.938

44.933

59.911

74.889

89.867

100X100

18.746

22.495

26.244

28.119

33.742

37.492

52.488

56.237

74.983

93.729

112.475

120X120

22.514

27.017

31.519

33.771

40.525

45.028

63.039

67.541

90.055

112.569

135.083

150X150

28.166

33.799

39.432

42.249

50.698

56.332

78.864

84.497

112.663

140.829

168.995

Hollow sections

The company manufactures hollow steel sections from all types of black, galvanized, and oiled sheets in various sizes
